PEMS Logistics
As per the vision of PEMS Company Limited to provide rental of equipment to mining companies, construction companies and contractors, the company has registered a subsidiary business under the name PEMS LOGISTICS with business registration number: SN00742018 with the principal activities as equipment sale and rental, and supply of general goods.
Below are the current equipment list:

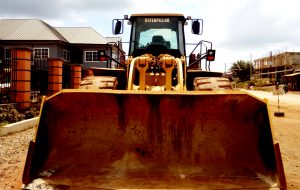

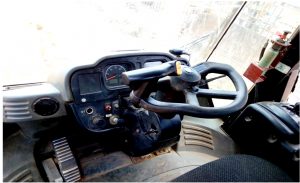

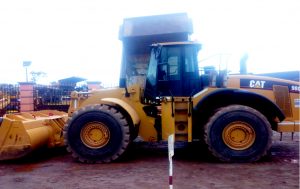

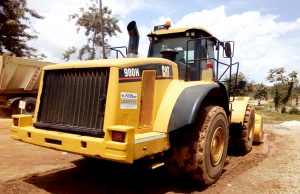

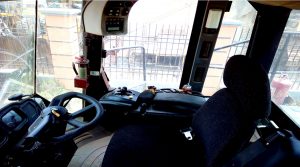

Loader 980H
Machine Make: CATERPILLAR
Machine Model: 980H
Machine Serial Number: MHG00595
Machine Type: LOADER
Year of Manufacture: 2007
Bucket
Dump Clearance at Full Lift and 45º
Discharge Angle 3170mm
Full Dump at Maximum Lift
Maximum Rollback at Maximum Lift 61º
Maximum Rollback at Ground 36º
Overall Height with Bucket at Full Raise 6370mm
Bucket Capacity (Volume) 5.0 m³
Engine
Model C15 ATAAC
Rated Engine RPM 1800
Bore 137mm
Stroke 171mm
No. of Cylinders 6
Net Power 260kw (349hp)
Gross Power 293kw (392hp)
Displacement 15.2Ltrs (928 in³)
Operational
Opeartional Weight 30, 306kg
Fuel Capacity 479 Ltrs (127 Gals)
Hydraulic System Fluid Capacity 250 Ltrs (66 Gals)
Static Tipping Load 21,173 kg (44,767 1b)
Transmission
Number of Forward Gears 4
Number of Reverse Gears 4
Maximum Speed – Forward 36.3km/Hr
Maximum Spead – Reverse 41.5km/Hr
HYDRAULIC SYSTEM
Real Time 6.0 Seconds
Dump Time 2.1 Seconds
Lower (Empty, Float Down) 3.4 Seconds

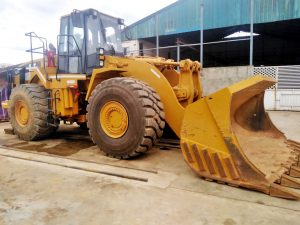

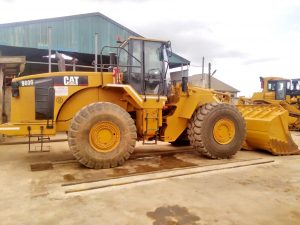

LOADER 980G
Machine Make: CATERPILLAR
Machine Model: 980G
Machine Serial Number: 2KR01882
Machine Type: LOADER
Year of Manufacture: 1997
Bucket
Dump Clearance at Full Lift and 45º
Discharge Angle 3170mm
Full Dump at Maximum Lift
Maximum Rollback at Maximum Lift 61º
Maximum Rollback at Carry Height 46º
Maximum Rollback at Ground 36º
Overall Height with Bucket at Full Raise 6205mm
Bucket Capacity (Volume) 5.0m³
ENGINE
Model 3406DITA
Rated Engine RPM 2100
Bore 137mm
Stroke 165mm
No. of Cylinders 6
Net Power 224 kw (300 hp)
Gross Power 236 kw (316 hp)
Displacement 15.6 Ltrs (893 in³)
Operational
Opeartional Weight 29, 773kg
Fuel Capacity 470 Ltrs (124 Gals)
Hydraulic System Fluid Capacity 208 Ltrs (33 Gals)
Static Tipping Load 20,30kg (44,767 1b)
Transmission
Number of Forward Gears 4
Number of Reverse Gears 4
Maximum Speed – Forward 37km/Hr
Maximum Spead – Reverse 42km/Hr
Hydraulic System
Real Time 6.8 Seconds
Dump Time 2.0 Seconds
Lower (Empty, Float Down) 3.4 Seconds

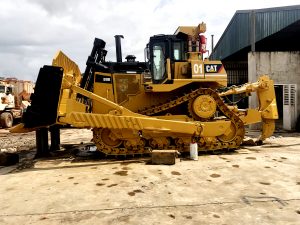

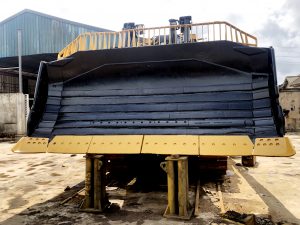

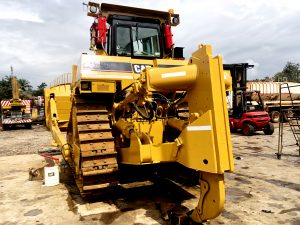

TRACK DOZER (D9R) 01
Machine Make: CATERPILLAR
Machine Model: D9R
Machine Serial Number: WDM02494
Machine Type: TRACKER DOZER
Machine Arrangemnt No. 2335250
Year of Manufacture: 2011
Specifications
Engine Make: 3408C
Engine S/No: 48W47660
Eng. Arr. No : 1693690
Number of Cylinders: 8
Gross Power: 305.8kw
Power Measured@ 1900rpm
Displacement 18L
Operational
Operating Weight: 49567kg
Fuel Capacity: 817.7L
Engine Oil Capacity : 45.5L
Hydraulic Fluid Capacity: 72L
Powertrain Fluid Capacity: 166.6L
Final Drives Fluid Capacity 19L
Operating Voltage 24V
Transmission
Transmission S/No: 6KX03933
Transmission Arr. No.: 1635299
Transmission Type: Powershift
Number of Foward Gears: 3
Number of Reverse Gears: 3
Max Speed – Forward 12km/h
Max Speed – Reverse 14.7km/h
STANDARD BLADE
Width: 4650mm
Height: 1934mm
Capacity: 16.4m3
Cutting Depth: 606m3

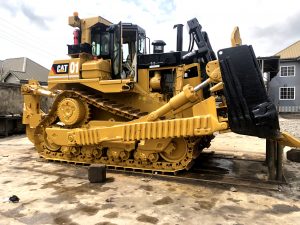

TRACK DOZER (PD 02)
Machine Make: CATERPILLAR
Machine Model: D9R
Machine Serial Number: WDM01364
Machine Type: TRACKER DOZER
Machine Arrangemnt No. 2335252
Year of Manufacture: 2011
Specifications
Engine Make: 3408C
Engine S/No: 48W46204
Eng. Arr. No : 1693690
Number of Cylinders: 8
Gross Power: 305.8kw
Power Measured@ 1900rpm
Displacement 18L
Operational
Operating Weight: 49567kg
Fuel Capacity: 817.7L
Engine Oil Capacity : 45.5L
Hydraulic Fluid Capacity: 72L
Powertrain Fluid Capacity: 166.6L
Final Drives Fluid Capacity 19L
Operating Voltage 24V
Transmission
Transmission S/No: 6KX03982
Transmission Arr. No.: 1635299
Transmission Type: Powershift
Number of Foward Gears: 3
Number of Reverse Gears: 3
Max Speed – Forward 12km/h
Max Speed – Reverse 14.7km/h
STANDARD BLADE
Width: 4650mm
Height: 1934mm
Capacity: 16.4m3
Cutting Depth: 606m3

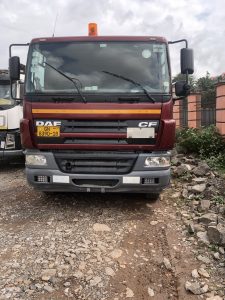

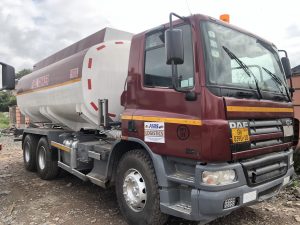

DAF FUEL BOWSER
Machine Make: DAF
Machine Model: FAT75310Q 455
Machine Serial Number: XLRAT75PCOEG48303
Machine Type: Fuel Tanker
Drive: 6×4
Gross Vehicle Weight: 26000 Kgs
Year of Manufacture: 2005
ENGINE/DRIVE LINE
Engine Make: DAF
Engine Type: Six Cylinder Turbo Diesel
Engine Number: S-22078
Order Number: 48303
Engine Horsepower: 314 hp (234 kw)
Engine Oil Capacity: 35 litrs
Fuel Type: Diesel
Chasis/ Suspension
Suspension: Springs
Number of Axles: 3
Front Brakes: Disc
Rear Brakes: Drums
Front Tyres Size: 315/80R22.5
Rear Tyres Size: 315/80R22.5
Cabin
Cab Type: Day Cab
Number of seats: 2
Transmisssion
Transmission: Manual
Number of speeds: 8
Truck Dimension
Length: 8.30 m
Height: 3.80 m
Width: 2.50 m
Technical Specification
Volume of Fuel Tanker (m3): 8.30 m
Compartment: 5
Truck Fuel Tank Capacity: 300 Litres

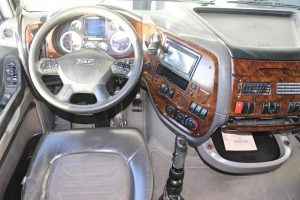

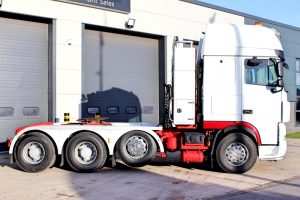

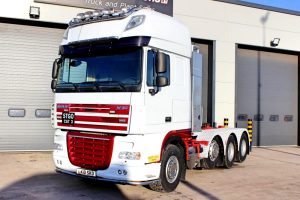

DAF XF LOWBED
Machine Make: DAF
Machine Model: FTM XF105.510
Machine Serial Number: XLRTM48MSOE877752
Machine Type: Tractor
Drive: 8×4
Gross Vehicle Weight: 150 TONS
Year of Manufacture: 2018
ENGINE/DRIVE LINE
Engine Make: PACCAR
Engine Number: A-29357
Engine Type: MX 375UI
Number of engine cylinders: 6
Engine horse power: 375 KW
Engine Oil Capacity: 45 Liters
Fuel Type: Diesel
CHASIS/SUSPENSION
Suspension (Rear front): Air
Suspension (Others): Springs
Number of Axles: 4
Front Brakes: Disc
Rear Brakes: Drums
Front Tyres Size: 385/65R22.5
Rear Tyres Size: 315/80R22.55

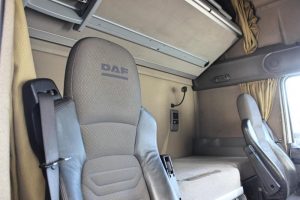

Cabin
Cab Type: Sleeper Cabin
Number of seats: 2
Transmission
Transmission: Manual
Number of Gears: 8
Truck Dimension
Length: 7.7m
Height: 4m
Width: 2.5m
Technical Specification
Truck Fuel Tank Capacity: 1500 Litres
Lowbed Trailer
Weight of Low Bed: 150 Tons
Length of Low bed: 40FT

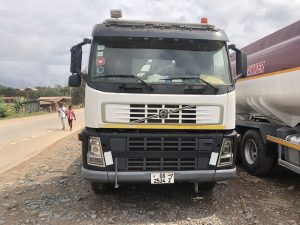

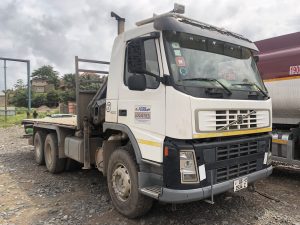

VOLVO HIAB TRUCK
Machine Make: Volvo
Machine Model: FM 64R 400
Machine Serial Number: YV2JSGOD38A668168
Machine Type: Flat Bed
Drive: 6×4
Gross Vehicle and Crane Weight: 26000 Kgs
Year of Manufacture: 2005
Engine/Drive Line
Engine Make: Volvo
Engine Type : Six Cylinders Turbo Diesel
Engine Number: D13*142144*
Order Number: A-668168
Engine Horsepower: 400mhp
Engine Oil Capacity: 40 litres
Fuel Type: Diesel
CHASIS/SUSPENSION
Suspension : Air
Number of Axles: 3
Front Brakes: Drums
Rear Brakes: Drums
Front Tyres Size: 13R22.5
Rear Tyres Size: 13R22.5
Cabin
Carbin Type: FM; day cab; air conditioner
Serial Number: 7152659
Number of Seats: 2
Transmission
Transmission: Automatic
Crane
Carbin Make: HIAB
Crane type: 166 B -2 CLX
Serial Number: 16611946
Crane Lifting Capacity: 5300kg
Manufactured Year: 2012
Technical Specification
Surface Area of Flat Bed: 5630mm x 2440mm
Trucl Fuel Tank Capacity: 300 Litres

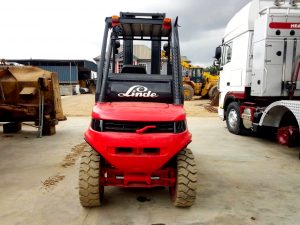

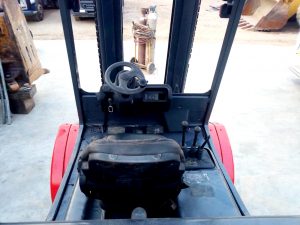

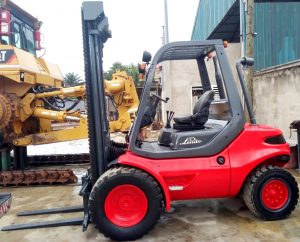

LINDE FORKLIFT
Machine Make: Linde Forklift
Machine Model: H35G-04
Machine Serial Number: H2X352L01410
Machine Type: Forklift
Rated Capacity: 3500kg
Height of Mast extended: 3750,mm
Gross Vehicle Weight: 6100 Kg
Year of Manufacture: 2000
Engine/Drive Line
Engine Make: Perkins
Engine Type : 1959/2100
Engine Number: AP80975*U102160G*
Engine Horsepower: 44kw
Engine Oil Capacity: 7.4 Liters
Fuel Type: Diesel
CHASIS/SUSPENSION
Number of Axles: 2×1
Brakes: Drum
Front Tyres Size: 15.5/55R18 (385/55R18)
Rear Tyres Size: 250-15NHS
Transmission
Transmission: Automatic
Technical Specification
Truck Fuel Tank Capacity: 70 Liters
Fork length: 1100 mm
Hydraulic oil tank, capacity 60 Liters

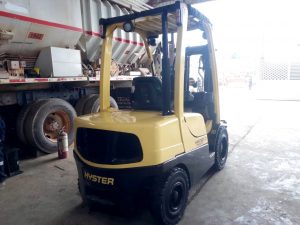

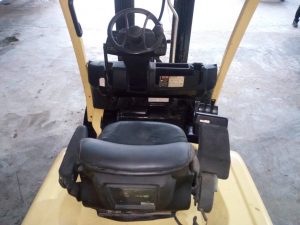

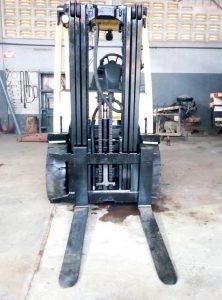

HYSTER FORKLIFT
Machine Make: Hyster
Machine Model: H3.0FT
Machine Serial Number: L177B21527F
Machine Type: Forklift
Rated Capacity: 3000kg
Height of Mast extended: 4015 mm
Gross Vehicle Weight: 4437 Kg
Year of Manufacture: 2008
Engine/Drive Line
Engine Make: Yanmar
Engine Type : 1959/2100
Engine Number: 13303
Engine Power: 35.8 kw
Engine Horsepower: 35.8kw
Number of Cylinders: 4
Fuel Type: Diesel
CHASIS/SUSPENSION
Number of Axles: 2×2
Brakes: Drum
Front Tyres Size: 28×9-15 solid
Rear Tyres Size: 6.50×10/5.00 solid
Transmission
Transmission: Automatic
Technical Specification
Truck Fuel Tank Capacity: 52.8 Liters
Fork length: 1170 mm
Hydraulic oil tank, capacity 45.8 Liters

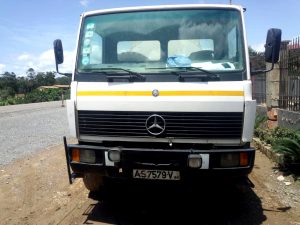

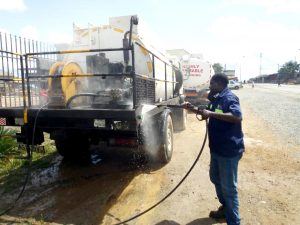

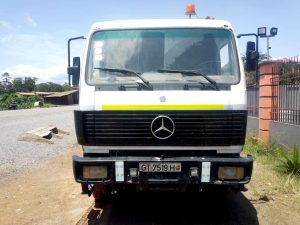

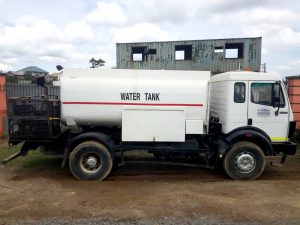

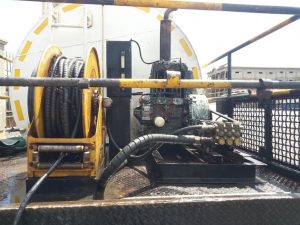

WASH TRUCK 01
Machine Make: Mercedes Benz
Machine Model: 1317AK
Machine Serial Number: WDB6761491K097624
Machine Type: Wash Truck
Drive: 4×4
Gross Vehicle Weight: 13000 Kg
Year of Manufacture: 1994
Engine/Drive Line
Engine Make: Mercedes Benz
Engine Number: 366 016 0205
Engine Horsepower: 165 HP (121 kw)
Number of Clylinders: 6
Engine Oil Capacity: 25 Liters
Fuel Type: Diesel
CHASIS/SUSPENSION
Suspensions: Springs
Number of Axles: 2
Front Brakes: Drum
Rear Brakes: Drum
Front Tyres Size: 385/65R22.5
Rear Tyres Size: 385/65R22.5
CABIN
Cab Type: Day Cab
Number of seats: 3
Transmission
Transmission: Manual
Number of Gears: 8
Technical Specification
Water Tank Capacity: 8218 Liters
Fuel Capacity: 125 Liters

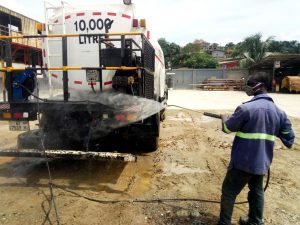

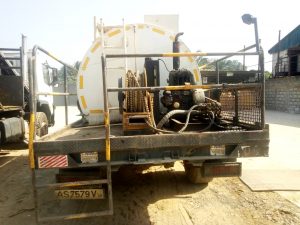

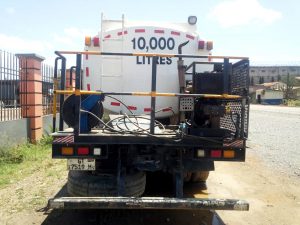

WASH TRUCK 02
Machine Make: Mercedes Benz
Machine Model: 1838L
Machine Serial Number: WDM6554341K007436
Machine Type: Wash Truck
Drive: 4×2
Gross Vehicle Weight: 18000 Kg
Year of Manufacture: 1993
Engine/Drive Line
Engine Make: Mercedes Benz
Engine Type: VG Engine
Engine Number: 442.950-10-001613
Engine Horsepower: 380 HP (283kw)
Number of Cylinders: 8
Engine Oil Capacity: 35 Liters
Fuel Type: Diesel
CHASIS/SUSPENSION
Suspensions: Springs
Number of Axles: 2
Front Brakes: Drum
Rear Brakes: Drum
Front Tyres Size: 13R22.5
Rear Tyres Size: 13R22.5
CABIN
Cab Type: Day Cab
Number of seats: 3
Transmission
Transmission: Manual
Number of Gears: 6
Technical Specification
Water Tank Capacity: 10000 Liters
Fuel Capacity: 210 Liters

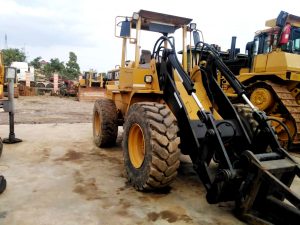

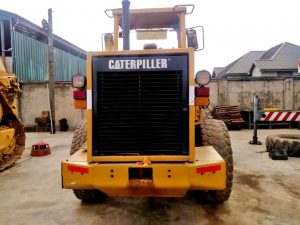

IT 28F
Machine Make: Caterpillar
Machine Model: IT 28F
Machine Serial Number: 1JL00135
Machine Type: Integrated Tool
Year of Manufacture: 1997
Bucket
Breakout Force: 23440 lbs (10, 632 kg)
Bucket Capacity – heaped: 2.7 cu yds (2 m)
Bucket Capacity – struck: 2.3 cu yds (2m)
Bucket Width: 8.4 ft (3m)
Digging depth: 0.4 ft (0m)
Dump CLearance at Max Raise: 9.8 ft (3 m)
Dumping angle, top: 45°
Engine
Bore: 4 in (10 cm)
Displacement: 366.2 cu in (0 m)
Engine Model: 3116
Gross Power: 156 hp (116 kw)
Net Power: 145 hp (108 kw)
Power Measured@ 2300 rpm
Stroke: 5i
Hydraulic System
Dump Time: 1.4
Lower Time 2.8
Pump Flow Capacity 27.5 gal/min (1041/min)
Raise Time: 6.1 sec
Relief Valve Setting: 3002.3 psi
Transmission
Max Speed- Forward: 37.7 mph (61 kph)
Max Speed – Reverse 25.8 mph (42 kph)
Max Speed Forward 23.7 mph (38 kph)
Max Speed Reverse 16.2 mph (26 kph)
Number of Forward Gears 4
Number of Reverse Gears 3
Technical Specification
Water Tank Capacity: 10000 Liters
Fuel Capacity: 210 Liters

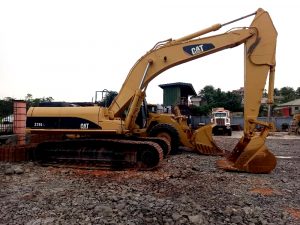

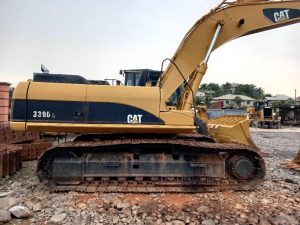

EXCAVATOR 330DL
Machine Make: Caterpillar
Machine Model: 330DL
Machine Serial Number: B6H00365
Machine Type: Excavator
Machine Arrangement No. 2396986
Year of Manufacture: 2008
Specifications
Engine Make: C9
Engine S/No: THX-
Number of Cylinders: 6
Net Power: 201 kw
Power Measured@: 1800rpm
Displacement: 18L
Operational
Operating Weight: 36152kg
Fuel Capacity: 620L
Engine Oil Capacity: 40L
Hydraulic Fluid Capacity 410L
Final Dtrive Fluid Capacity 16L
Operating Voltage 24V
Standard Bucket
Capacity: 3m3
Cutting Depth 7m

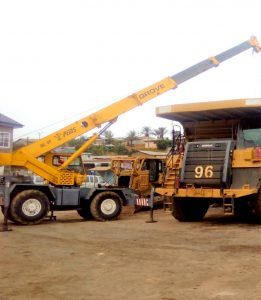

GROVE CRANE
Machine Make: Groove
Machine Model: RT400
Machine Serial Number: 77924
Machine Type: Crane
Year of Manufacture: 2008
Specifications
Engine Make: Cummins
Engine S/No: 4BT3.9
Number of Cylinders: 4
Net Power: 105kw
Power Measured: 1700rpm
Operational
Operating Weight: 20 Tons
Fuel Capacity: 151L
Engine Oil Capacity: 20L
Hydraulic Fluid Capacity 250L
Final Drive Fluid Capacity 16L
Operating Voltage 24V
Transmission
Transmission: Manual
Number of Gears 6 forward/reverse
